名 称： 美标球阀
型 号： Q41F/H
口 径： DN15-DN200
压 力： 150LB-600LB
材 质： 铸钢、不锈钢、锻钢、铬钼钢
美标球阀
连接方式：
法兰和环连接端标准 ANSI B16.5
对焊端ANSI B16.25
操作方式：
手柄
蜗轮，电动，气动执行器的连接尺寸标准：ISO 5211
防静电和防火装置
主要部件材料
|
编号
|
名称
|
碳钢
|
不锈钢
|
|
WCB
|
LCB
|
CF8
|
CF8M
|
CF3
|
CF3M
|
|
1
|
阀体
|
A216 WCB
|
A352 LCB
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
2
|
阀盖螺母
|
A194 2H
|
A194 4
|
A194 8
|
|
3
|
阀盖螺栓
|
A193 B7
|
A320 L7
|
A193 B8
|
|
4
|
阀帽
|
A216 WCB
|
A352 LCB
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
5
|
垫片
|
SS Spiral Wound/Graphite or SS Spiral Wound/PTFE
|
|
6
|
球体
|
A105/Ep.Cr or F6
|
A182 F6
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
7
|
阀座
|
RPTFE or POM
|
|
8
|
小弹簧
|
Stainless Steel
|
|
9
|
小球体
|
A182 F304, A182 F316L
|
|
10
|
阀杆
|
A182 F6
|
A182 F6
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
11
|
阀杆座
|
PTFE
|
|
12
|
阀杆填料
|
Graphite or PTFE
|
|
13
|
压盖
|
A182 F6
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
14
|
压盖螺栓
|
A193 B7
|
A193 B8
|
|
15
|
压套
|
A216 WCB
|
A351 CF8
|
|
16
|
支架盘
|
Steel
|
|
17
|
手柄
|
A216 WCB
|
材料符合ASTM要求
* 推荐使用蜗轮或电动头
内件材料: API 600
|
编号
|
阀座
|
阀瓣
|
阀杆
|
上密封
|
|
1
|
13Cr
|
13Cr
|
F6
|
F6
|
|
2
|
304
|
304
|
F304
|
F304
|
|
5
|
Stellite
|
Stellite
|
F6
|
F6
|
|
8
|
Stellite
|
13Cr
|
F6
|
F6
|
|
9
|
Monel
|
Monel
|
Monel
|
Monel
|
|
10
|
316
|
316
|
F316
|
F316
|
|
13
|
Alloy20
|
Alloy20
|
Alloy20
|
Alloy20
|

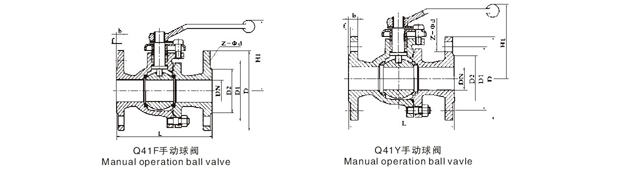

尺寸和重量
|
Class
|
DN
|
mm
|
15
|
20
|
25
|
40
|
50
|
65
|
80
|
100
|
150
|
200
|
250
|
|
NPS
|
in
|
1/2
|
3/4
|
1
|
1-1/2
|
2
|
2-1/2
|
3
|
4
|
6
|
8
|
10
|
|
150
|
L(RF)
|
mm
|
108
|
117
|
127
|
165
|
178
|
191
|
203
|
229
|
394
|
457
|
533
|
|
in
|
4.25
|
4.6
|
5
|
6.5
|
7
|
7.5
|
8
|
9
|
15.5
|
18
|
21
|
|
L1(BW)
|
mm
|
140
|
152
|
165
|
190
|
216
|
241
|
283
|
305
|
457
|
521
|
559
|
|
in
|
5.5
|
6
|
6.5
|
7.48
|
8.5
|
9.5
|
11.13
|
12
|
18
|
20.5
|
22
|
|
L2(RTJ)
|
mm
|
119
|
129.7
|
139.7
|
178
|
191
|
203
|
216
|
241
|
406
|
470
|
546
|
|
in
|
4.69
|
5.11
|
5.5
|
6.9
|
7.5
|
8
|
8.5
|
9.5
|
16
|
18.5
|
21.5
|
|
H
|
mm
|
59
|
63
|
75
|
95
|
153
|
165
|
195
|
213
|
272
|
342
|
495
|
|
in
|
2.3
|
2.5
|
2.95
|
3.74
|
6.02
|
6.5
|
7.68
|
8.39
|
10.7
|
13.5
|
19.5
|
|
Do(W)
|
mm
|
130
|
130
|
160
|
230
|
400
|
400
|
600
|
850
|
1100
|
1500
|
350*
|
|
in
|
5.1
|
5.1
|
6.3
|
9
|
15.74
|
15.74
|
23.62
|
33.46
|
43.3
|
59
|
13.8
|
|
WT(Kg)
|
RF
|
2.3
|
3
|
4.5
|
7
|
15
|
20
|
25
|
40
|
97
|
160
|
240
|
|
BW
|
2.0
|
2.5
|
3.8
|
5.8
|
12
|
17
|
21
|
36
|
92.8
|
154
|
227
|
|
Class
|
DN
|
mm
|
15
|
20
|
25
|
40
|
50
|
65
|
80
|
100
|
150
|
200
|
|
|
NPS
|
in
|
1/2
|
3/4
|
1
|
1-1/2
|
2
|
2-1/2
|
3
|
4
|
6
|
8
|
|
|
300
|
L(RF)
|
mm
|
140
|
152
|
165
|
190
|
216
|
241
|
283
|
305
|
403
|
502
|
|
|
in
|
5.5
|
5.98
|
6.5
|
7.48
|
8.5
|
9.5
|
11.13
|
12
|
15.88
|
19.75
|
|
|
L1(BW)
|
mm
|
140
|
152
|
165
|
190
|
216
|
241
|
283
|
305
|
457
|
521
|
|
|
in
|
5.5
|
5.98
|
6.5
|
7.48
|
8.5
|
9.5
|
11.13
|
12
|
18
|
20.5
|
|
|
L2(RTJ)
|
mm
|
151
|
164.7
|
177.7
|
202.7
|
232
|
257
|
298
|
321
|
419
|
518
|
|
|
in
|
5.95
|
6.48
|
7
|
8
|
9.13
|
10.13
|
11.75
|
12.63
|
16.5
|
20.38
|
|
|
H
|
mm
|
59
|
63
|
75
|
107
|
153
|
165
|
195
|
213
|
272
|
342
|
|
|
in
|
2.3
|
2.5
|
2.95
|
4.2
|
6.02
|
6.5
|
7.68
|
8.39
|
10.7
|
13.5
|
|
|
Do(W)
|
mm
|
130
|
130
|
160
|
230
|
400
|
400
|
600
|
850
|
1100
|
1500
|
|
|
in
|
5.1
|
5.1
|
6.3
|
9
|
15.74
|
15.74
|
23.62
|
33.46
|
43.3
|
59
|
|
|
WT(Kg)
|
RF
|
2.5
|
3.5
|
5.5
|
10.5
|
20
|
25
|
31
|
52
|
118
|
200
|
|
|
BW
|
2.1
|
3
|
4.8
|
8.7
|
17
|
22
|
28
|
48
|
105
|
185
|
|
|
Class
|
DN
|
mm
|
15
|
20
|
25
|
40
|
50
|
65
|
80
|
|
|
|
|
|
NPS
|
in
|
1/2
|
3/4
|
1
|
1-1/2
|
2
|
2-1/2
|
3
|
|
|
|
|
|
600
|
L(RF)
|
mm
|
165
|
190
|
216
|
241
|
292
|
330
|
356
|
|
|
|
|
|
in
|
6.5
|
7.48
|
8.5
|
9.5
|
11.5
|
13
|
14
|
|
|
|
|
|
L1(BW)
|
mm
|
165
|
190
|
216
|
241
|
292
|
330
|
356
|
|
|
|
|
|
in
|
6.5
|
7.48
|
8.5
|
9.5
|
11.5
|
13
|
14,
|
|
|
|
|
|
L2(RTJ)
|
mm
|
163.4
|
190
|
216
|
241
|
295
|
333
|
359
|
|
|
|
|
|
in
|
6.43
|
7.48
|
8.5
|
9.5
|
11.63
|
13.13
|
14.13
|
|
|
|
|
|
H
|
mm
|
59
|
63
|
75
|
107
|
153
|
165
|
195
|
|
|
|
|
|
in
|
2.3
|
2.5
|
2.95
|
4.2
|
6.02
|
6.5
|
7.68
|
|
|
|
|
|
Do(W)
|
mm
|
130
|
160
|
160
|
230
|
600
|
850
|
1250
|
|
|
|
|
|
in
|
5.1
|
6.3
|
6.3
|
9
|
23.62
|
33.46
|
49.25
|
|
|
|
|
|
WT(Kg)
|
RF
|
7.5
|
10.5
|
14.5
|
18.5
|
38
|
56
|
66
|
|
|
|
|
|
BW
|
6
|
8.7
|
11
|
14.7
|
31
|
49
|
58
|
